Active Water Loss
Management

PYDRO's mission is to preserve water.
PYDRO's self-powered multi sensor solution monitors water leakages real time 24/7 and helps reducing water losses and predicting anomalies.

The Challenge:
Water losses
in pipe networks

30% of water is lost through leaks and bursts in water networks resulting in an environmental damage and waste of natural resources. About 4 Billion people are facing water scarcity at least one month of the year. Climate Change causes further impacts: 2016-2020 is set to be the warmest 5-year period on record.

45 billion litres

of potable water are lost EVERY DAY

90 million kWh

of wasted energy for water distribution

42 kilotons CO2

are emitted to generate the wasted energy

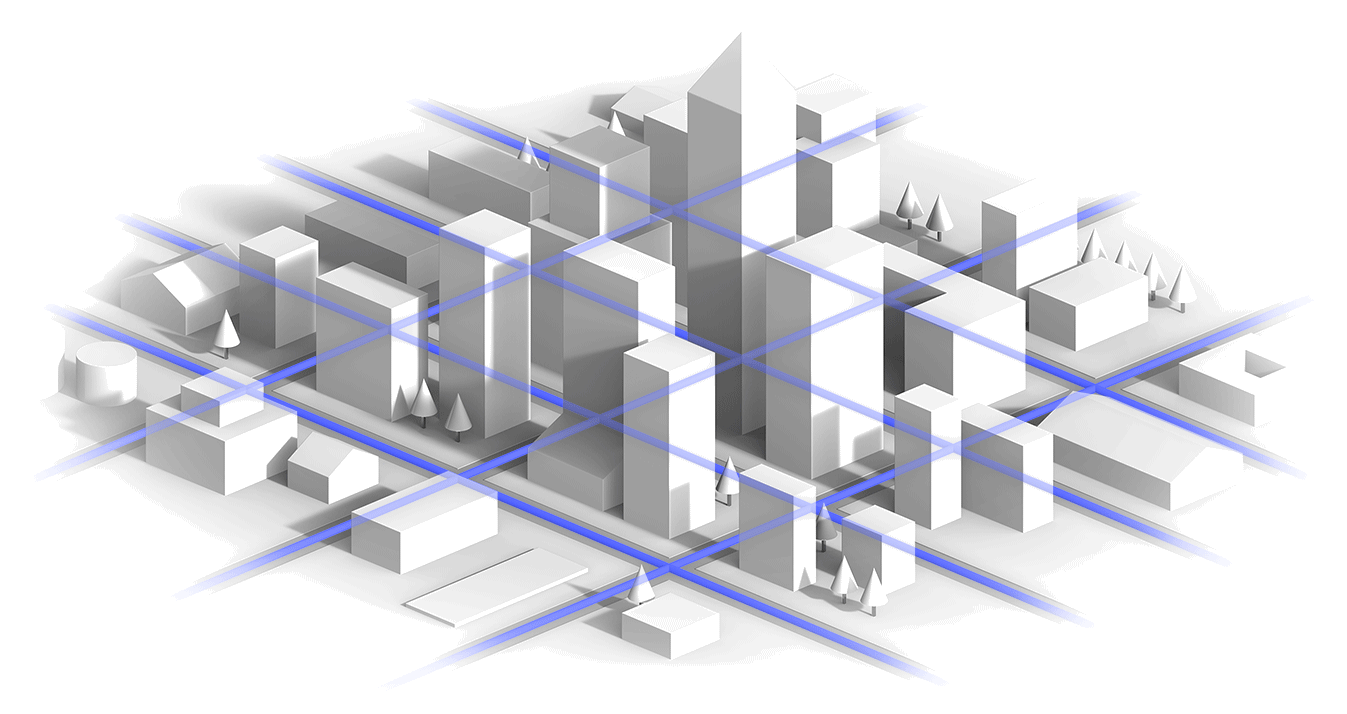

PYDRO Water Losses in Pipe Networks
PYDRO self-powered water meter

The Hardware:
A Self-Powered
Multi-Sensor Device

The PT1 is a hydro-powered monitoring unit. The device measures flow and pressure at high accuracy levels everywhere in the network without the need of external power supply. It delivers data to manage smart water networks, to reduce water leakage and to prevent pipe bursts. With a smart and innovative energy management the integrated power unit charges the internal battery switches into low pressure drop mode at runaway speeds.

The Solution:

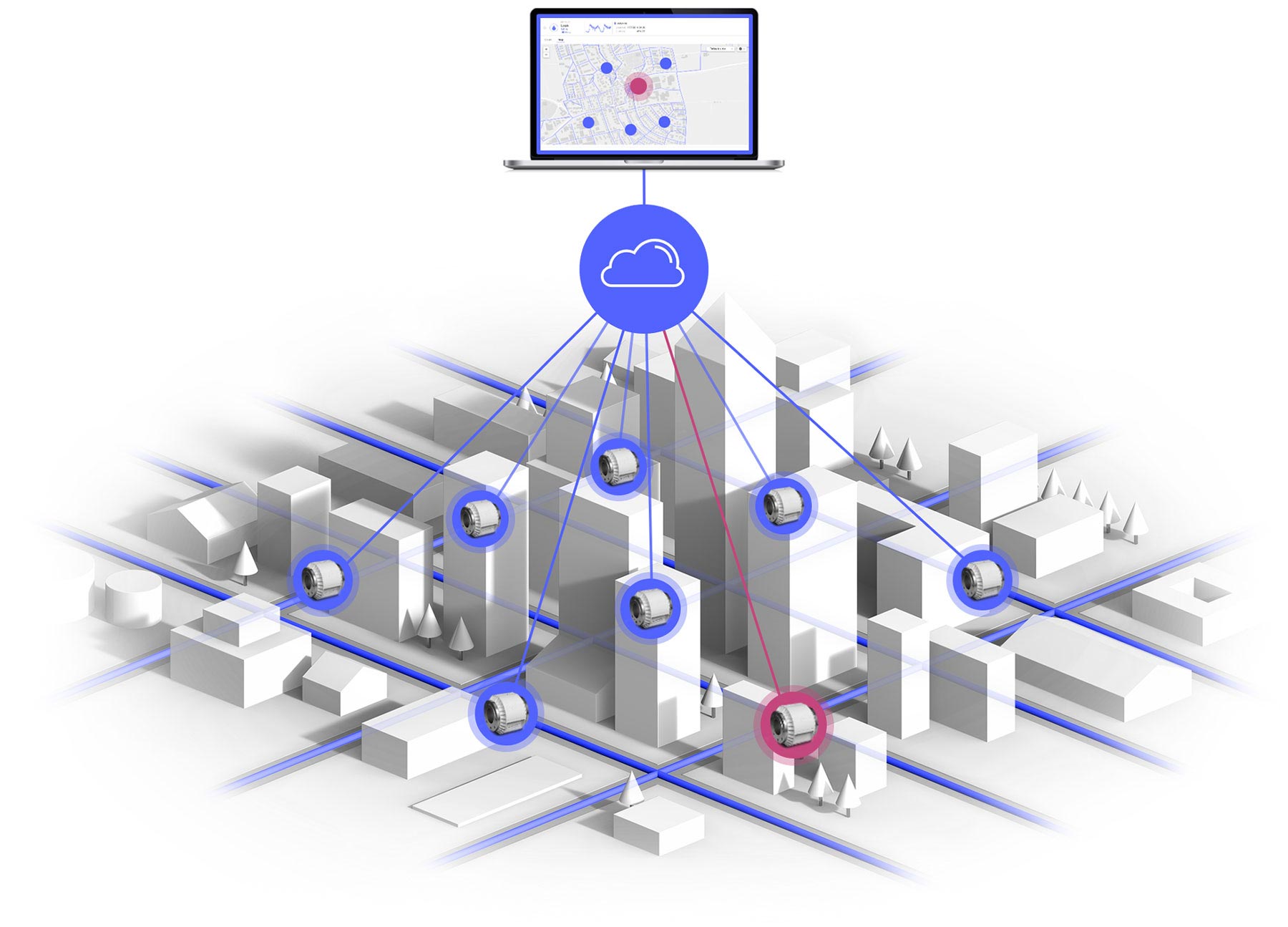

A Sensor Network For Real-Time Leakage Monitoring

By measuring the flow and pressure at dedicated points in the water network and comparing it with the hydraulic model, a digital twin can measure the leakage rate and pre-locate leaks. This will significantly reducing leakage run times and thus saving money, energy and reducing CO2 emissions.

PYDRO-Water-Monitoring-Solution
Zoning Water Loss Management

Water Loss Management:
zoning today and tomorrow

Zoning:

Water utilities separate their big networks into smaller discrete metering areas (DMA). To separate these areas, valves must be closed. This is causing a reduction of hydraulic efficiency.

Zoning Water Loss Management

Water Loss Management:
zoning today and tomorrow

NRW ballancing:

These DMAs allow water utilities to do a balance of non-revenue water (NRW)and get a value for NRW in each DMA.

Zoning Water Loss Management

Water Loss Management:
zoning today and tomorrow

DMA Prioritization:

However, the location of leaks is still not known. Only the priority of DMA is determined. But a DMA is still sometimes a wide area of a up to 10km of pipelines or 5000 service connections.

Zoning Water Loss Management

Water Loss Management:
zoning today and tomorrow

PT1 sensor network:

PT1 sensors are deployed at dedicated points in the network. The more sensors you have the higher the accuracy of status will be.
All DMA valves could be opened and hydraulic efficiency will improve!

Zoning Water Loss Management

Water Loss Management:
zoning today and tomorrow

Real time status of network:

PT1 sensors measure water velocity, minimum night flows, pressure transients as well as temperature and deliver real time status of network.

Zoning Water Loss Management

Water Loss Management:
zoning today and tomorrow

Save leakage time!

The monitoring software compares the status of the network with the hydraulic model as well as with historical data and pre-locate leaks within a couple of 100m.
Your leakage team could be deployed every day to the most important spots. This saves leakage time!

Open QUESTIONS?

We Are Happy to Talk with You
